產品特點：
1.高分辨率觸摸屏，界面美觀大方，多組數據一屏顯示，操作方便，中英文可選；
2.智能模糊PID控制，升溫速度快，控制精度高，可選擇兩路溫度控制，多段可編程控制；
3.自動壓力控制，壓力單位可選擇PSI, Kpa, mbar, pa等；
4.具備預約運行功能、計時功能和掉電記憶功能；
5.三級權限管理功能；
6.控制器具有屏幕鎖定功能，避免人為觸摸操作失誤；
7.具有實時曲線查看和歷史數據存儲與導出功能，可擴展遠程通訊及U盤、打印機等功能。
Product Features:
1. High resolution touch screen, aesthetic and elegant interface, multiple sets of data displayed on one screen, easy to operate, Chinese and English language optional;
2. Intelligent fuzzy PID control, shorter time to achieve set value, better temperature control accuracy, two-way temperature control optional,can be extended to multi-segments programmable control;
3. Automatic pressure control, pressure unit can choose from PSI, Kpa, mbar,pa,etc.;
4. Have the function of appointment running, timing and power-off memory;
5. Three-level permission management function;
6. The controller has screen locking function to avoid misoperation;
7. It has functions of real-time curve view, historical data storage and export, and can be extended to remote communication, USB flash disk, printer and other functions.
技術參數Technical parameter：

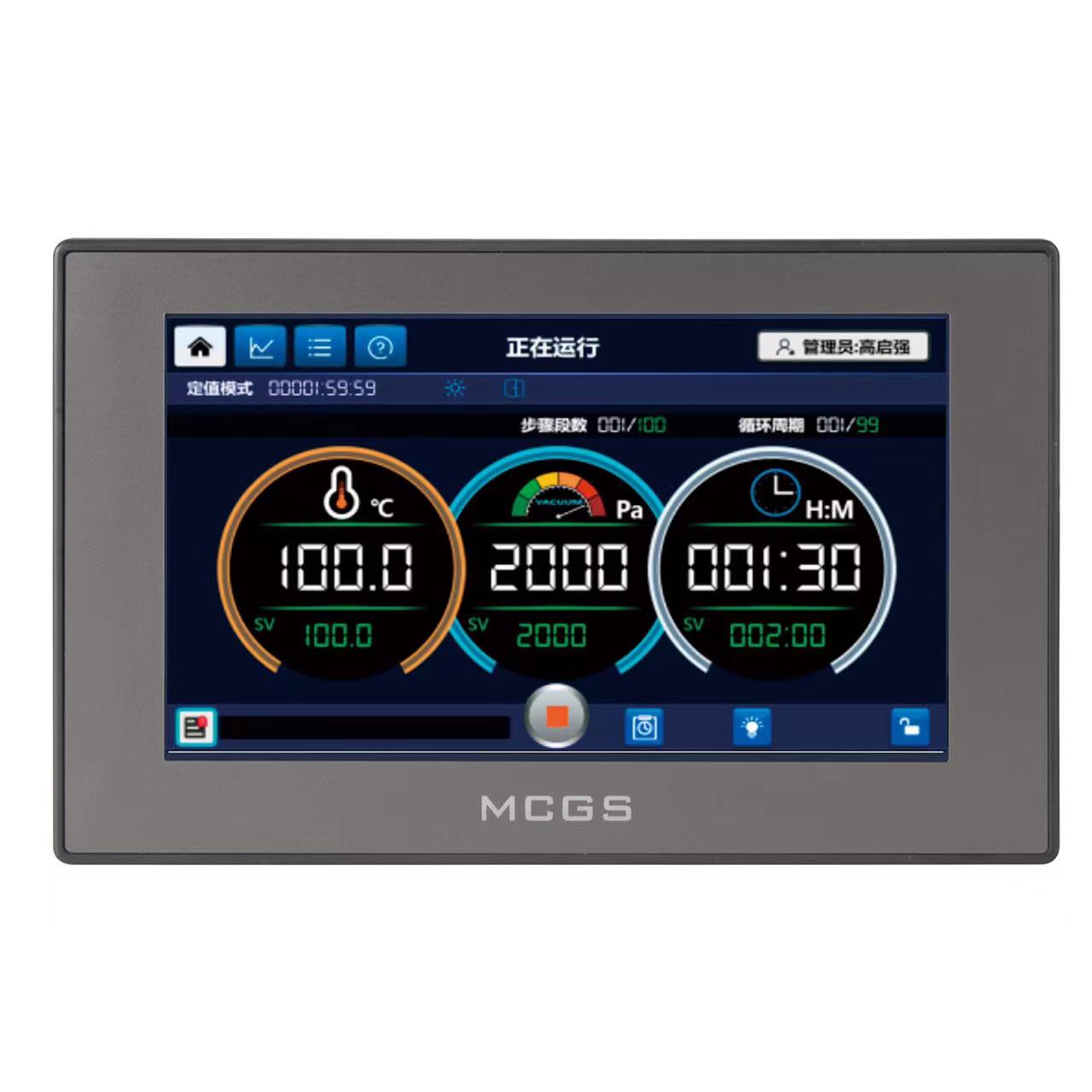

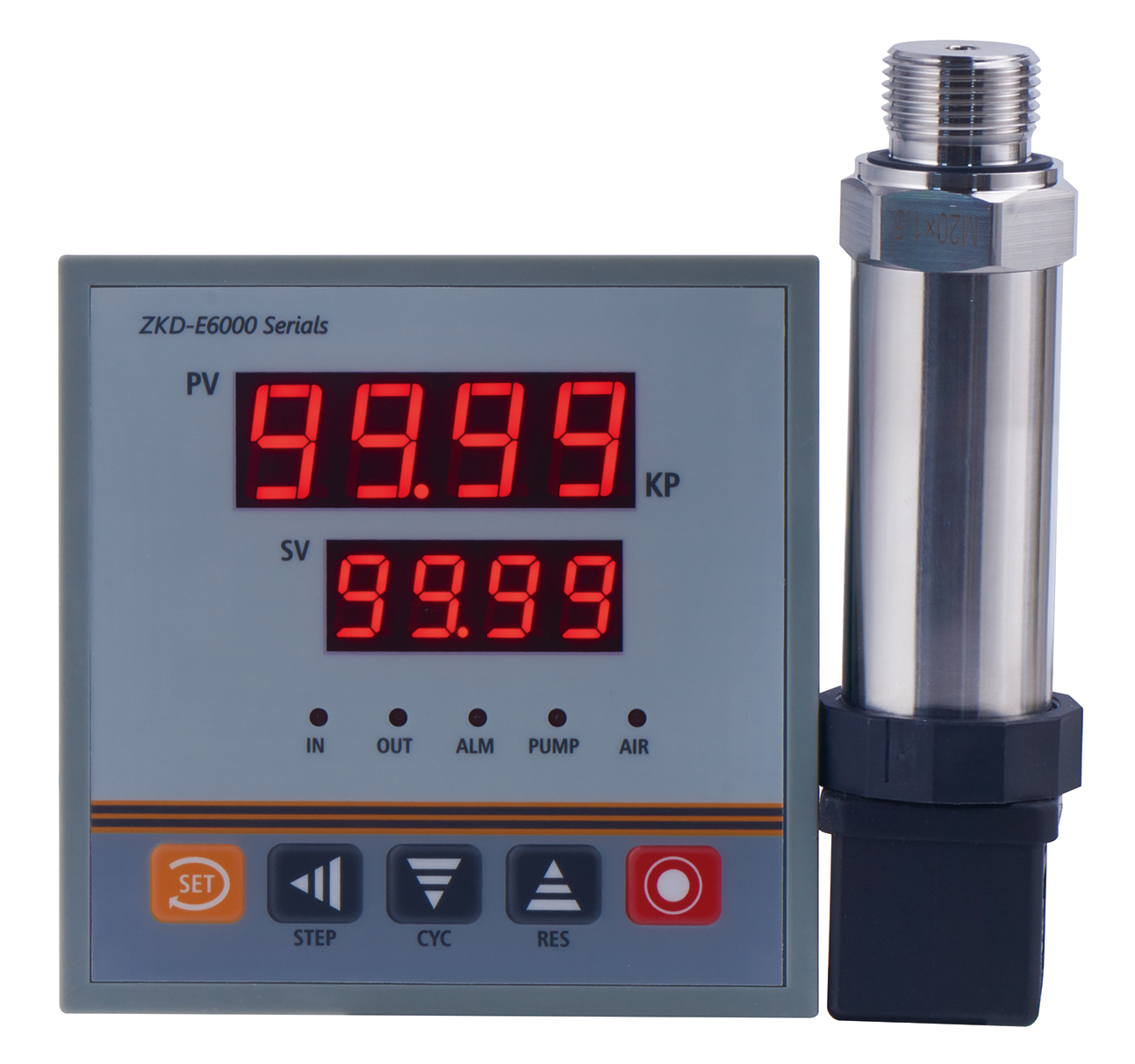

產品名稱 Product name | 真空控制器 Vacuum controller | 真空度溫度控制器 Vacuum temperature controller | |
產品型號 Product model | ZKD-E60J2 | PHZTH-T7206-Ti | |
顯示方式 Display mode | LED | 7寸IPS觸摸屏 7" IPS touch screen | |
安裝尺寸 Installation size | 91.5*91.5mm | 187*111mm | |
顯示分辨率 Display resolution | 0.01Kpa | 0.1℃/1Pa | |
測溫誤差 Temperature measurement error | ＜滿量程×0.3% ＜Full scale×0.3%
| ||
計時范圍 Timing range | 1~5段/0~99周期/0～9999分鐘 1~5 segments/0~99 cycles/0~9999 minutes | 5模式1~100段/0～99周期/0~999:59小時:分鐘 5 modes, 1~100 segments/ 0~99cycles/0~999:59H:M
| |
輸出容量 Output capacity | 真空泵繼電器≤30A 抽氣、進氣、放氣電磁閥繼電器≤3A Vacuum pump relay ≤ 30A Pumping, air intake, bleed solenoid valve relay ≤ 3A | 加熱可控硅≤8A；Heat SCR≤8A； 加熱外接固態：DC12V,30mA Heat SSR：DC12V,30mA 真空泵輸出繼電器≤30A 抽氣、進氣、放氣電磁閥繼電器≤3A Vacuum pump relay ≤ 30A Pumping, air intake, bleed solenoid valve relay ≤ 3A | |
電源電壓 Supply voltage | 100～240VAC/50～60Hz | ||
工作環境 Working condition
| 環境溫度：-10～60℃ 相對濕度：< 90%RH（不結露） Environment temperature：-10～60℃ Relative humidity：< 90%RH (No dew) | ||
產品特點：
1.高分辨率觸摸屏，界面美觀大方，多組數據一屏顯示，操作方便，中英文可選；
2.智能模糊PID控制，升溫速度快，控制精度高，可選擇兩路溫度控制，多段可編程控制；
3.自動壓力控制，壓力單位可選擇PSI, Kpa, mbar, pa等；
4.具備預約運行功能、計時功能和掉電記憶功能；
5.三級權限管理功能；
6.控制器具有屏幕鎖定功能，避免人為觸摸操作失誤；
7.具有實時曲線查看和歷史數據存儲與導出功能，可擴展遠程通訊及U盤、打印機等功能。
Product Features:
1. High resolution touch screen, aesthetic and elegant interface, multiple sets of data displayed on one screen, easy to operate, Chinese and English language optional;
2. Intelligent fuzzy PID control, shorter time to achieve set value, better temperature control accuracy, two-way temperature control optional,can be extended to multi-segments programmable control;
3. Automatic pressure control, pressure unit can choose from PSI, Kpa, mbar,pa,etc.;
4. Have the function of appointment running, timing and power-off memory;
5. Three-level permission management function;
6. The controller has screen locking function to avoid misoperation;
7. It has functions of real-time curve view, historical data storage and export, and can be extended to remote communication, USB flash disk, printer and other functions.
技術參數Technical parameter：
產品名稱 Product name | 真空控制器 Vacuum controller | 真空度溫度控制器 Vacuum temperature controller | |
產品型號 Product model | ZKD-E60J2 | PHZTH-T7206-Ti | |
顯示方式 Display mode | LED | 7寸IPS觸摸屏 7" IPS touch screen | |
安裝尺寸 Installation size | 91.5*91.5mm | 187*111mm | |
顯示分辨率 Display resolution | 0.01Kpa | 0.1℃/1Pa | |
測溫誤差 Temperature measurement error | ＜滿量程×0.3% ＜Full scale×0.3%
| ||
計時范圍 Timing range | 1~5段/0~99周期/0～9999分鐘 1~5 segments/0~99 cycles/0~9999 minutes | 5模式1~100段/0～99周期/0~999:59小時:分鐘 5 modes, 1~100 segments/ 0~99cycles/0~999:59H:M
| |
輸出容量 Output capacity | 真空泵繼電器≤30A 抽氣、進氣、放氣電磁閥繼電器≤3A Vacuum pump relay ≤ 30A Pumping, air intake, bleed solenoid valve relay ≤ 3A | 加熱可控硅≤8A；Heat SCR≤8A； 加熱外接固態：DC12V,30mA Heat SSR：DC12V,30mA 真空泵輸出繼電器≤30A 抽氣、進氣、放氣電磁閥繼電器≤3A Vacuum pump relay ≤ 30A Pumping, air intake, bleed solenoid valve relay ≤ 3A | |
電源電壓 Supply voltage | 100～240VAC/50～60Hz | ||
工作環境 Working condition
| 環境溫度：-10～60℃ 相對濕度：< 90%RH（不結露） Environment temperature：-10～60℃ Relative humidity：< 90%RH (No dew) | ||
